Define all the Hardware

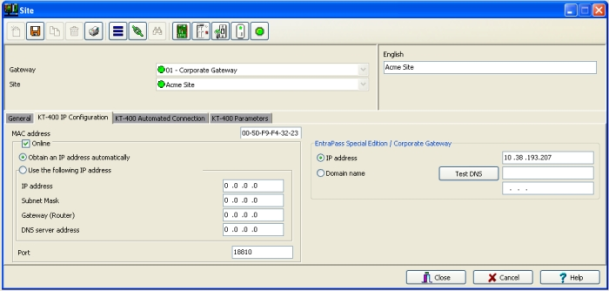

Start with SITE icon and then open them one by one going to the right

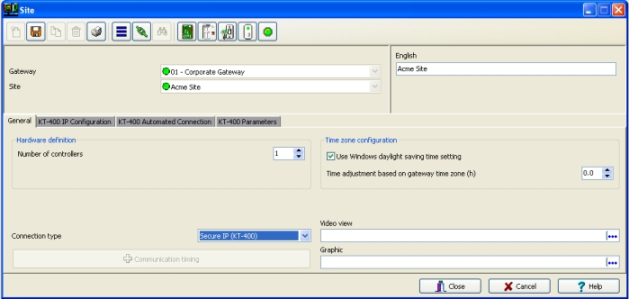

Under SITE, click on NEW (sheet of paper), Set the Number of controller, Connection type and appropriate options. Click SAVE (orange floppy disk)

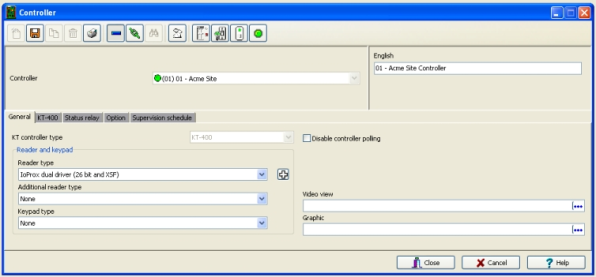

Click the CONTROLLER icon and select the controller from the drop down list.

Select the CONTROLLER TYPE and READER TYPE

Go under the KT-300 and type in the serial number

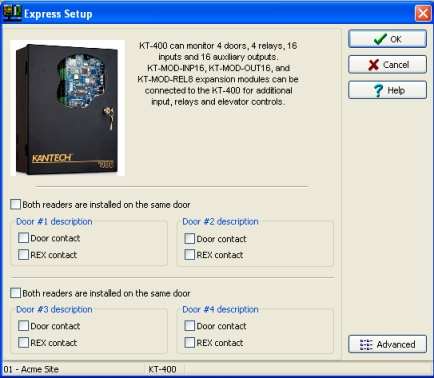

Click SAVE, you will be prompt to use the EXPRESS SETUP

Always say YES to the EXPRESS SETUP, You will save time. It will define the doors, contact & REX inputs and outputs.
