Door Strikes

Required Wire:

    18 AWG 2 Conductors (or bigger depending on Voltage Drop).

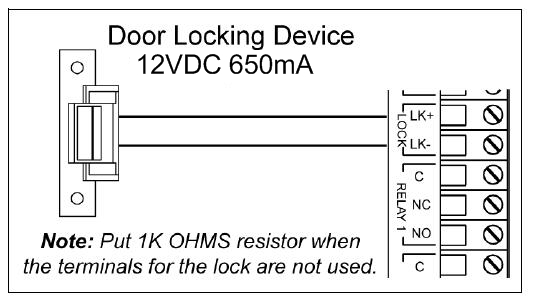

KTES-Strike

(Figure 1)

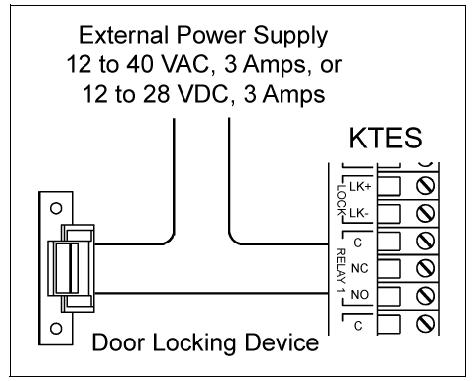

KTES-Relay-Strike

(Figure 2)

Voltage:

Each lock device outputs 12VDC 650mA. (Figure1)

The KTES can use an external power connected on relay 1 to power a lock device to a maximum of 12 to 40VAC 3Amps or 12 to 28VDC 3Amps. (Figure 2)
