Required Wire:

• Ethernet communication
• RS-485:
•   2 twisted pairs, #22AWG,unshielded, Ethernet CAT3
•   Compatible with Ethernet CAT5e cable
•   Up to 4000’ with Belden #1227A1
• Up to 32 KTES in daisy chain configuration

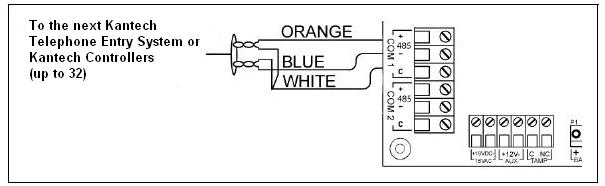

Connect the rs-485 to other Kantech controller to communicate with EntraPass

Connect the Ethernet cable to the KTES to be able to program the unit via the network
