The High Security Cost Efficient |
|
|
|
|
|
|
- Over 4.2 Billion unique codes with XSF format.
- Available in XSF (high security format) and 26-bit Standard.
- Keypad Version: the “ * ” or the “ # ” can activate relay or arm alarm system.
- Indoor/ Outdoor use (-30F to 150F).
- Up to 1000’ (22 AWG twisted unshielded, Belden # 874 @ 12VDC).
- Up to 500’ (22 AWG twisted unshielded, Belden # 874 @ 5VDC).
- Quick Connect Terminal Block (P225 and P325 series).
- Reader with integrated keypad (P225KP and P325KP) are ADA compliant (Braille).
- From 6.5”(P225, mullion mount), 8”(P325, single gang box) to 29”(P600, Long range).
- 80’ with the P700, Wireless Receiver and Transmitter.
- Cards: Standard, Dye Sub, Keytags and Adhesive Round Tags.
|
|
|
|

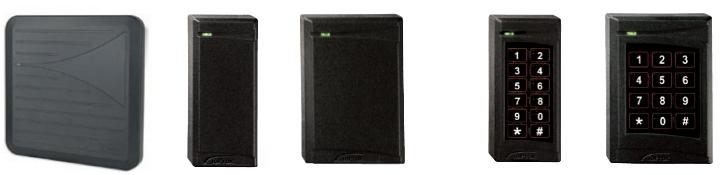

P600
|
|
|
|
|
P225XSF
|
|
|
P225W26
|
|
|
|
|
P325XSF
|
|
|
P325W26
|
|
|
|
|
P225KPXSF
|
|
|
P225KPW26
|
|
|
|
|
P325KPXSF
|
|
|
P325KPW26
|
|
|
|
|
|
|
|
|

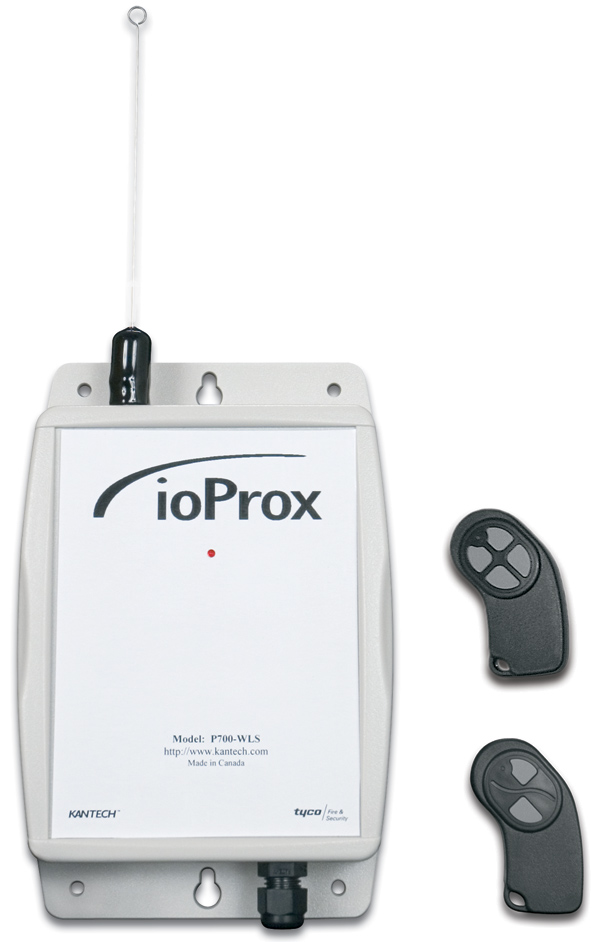

P700WLS
|
|
Receiver and Transmitter
|
|
|
|
|
|
|
|

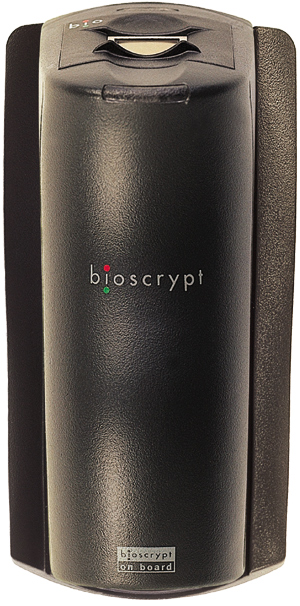

VPRX-IO-XSF
|
|
Integrated Fingerprint verification & proximity Reader
|
|
|
