Telephone line

Uses the telephone line to call the tenants and for dial-up communication with EntraPass for programming

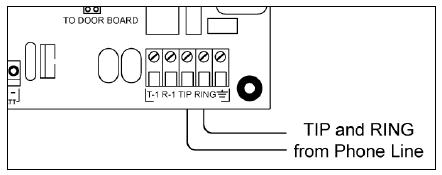

KTES-Telephone

Connect Tip (green) and RING (red) from the phone line to the TIP and RING terminals

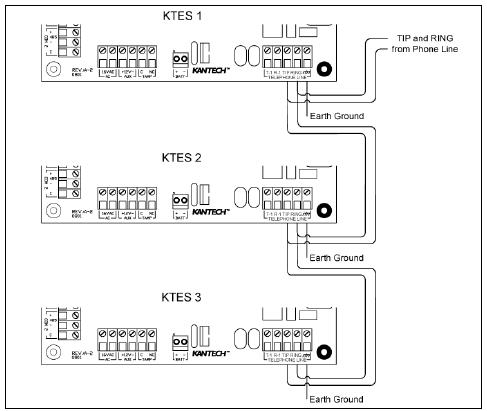

Connect up to 5 units with the same telephone line when doing a dial up integration for remote programming

Connect up to 10 units that can share the same telephone line to call tenants.  The KTES is ether programmed via rs-485 for remote programming or via the keypad on the KTES.

The maximum telephone distance between the first KTES and the last KTES is 1000 of feet
KTES-Telephone2
